Type 型號		SRP12	SRP50/51	SRP100/103	SRP152/151	SRP300/151	SRP300/226	SRP300/300	SRP352/300	SRP330	SRP550	SRP1010	SRP1212
MAX.Input Power 最大輸入功率kWHp		45	100	210	300	255	350	480	490	620	920	1250	1650
MAX.Input Power 最大輸入功率kWHp		61	135	285	400	347	476	650	666	843	1250	1700	2244
MAX.InputTorqueN.m 最大輸入扭距（Sf=1）		200	420	850	1675	2500	2050	2800	5200	3300	5423	14740	19500
MAX.Input Speed r/min 最大輸入轉速		2300	2500	2350	2000	1000	1800	1800	1000	1800	1800	1000	1000
Reduction Ratio 減速比	i	1.93	2.5	2.68	3.46	2.37	3.34	3.96	2.20	4.04	5.059	3.257	3.58
	i上upper	1.7	1.64	1.65	1.53	1.045	1.63	1.63	0.9032	1.53	1.647	1.286	1.286
	i下lower	1.13	1.52	1.62	2.26	2.26	2.05	2.43	2.43	2.64	3.071	2.533	2.79
Propeller Diameter mm 螺旋槳直徑	MAX最大	500	800	950	1150	1150	1350	1550	1550	1500	1800	2100	2300
Propeller Diameter mm 螺旋槳直徑	MAX最小			700	900		1100	1250
PAL Length mm PAL長度	MAX最大	2250	2800	2800	4250	4400	4750	4750	4750	5000
PAL Length mm PAL長度	MAX最小	350	875	980	1400	1400	1750	1750	2000	1700	2600	2800	3000
Weigt（incl.Propeller and oil at PAL min）kg 重量（包括槳頁、滑油，并且PAL最?。?/div>		65	190	300	1370		2000	2100	3580	2800	5850	11000	16500
Per 100mm extension kg PAL 每增加100mm增加重量kg		8	9	20.4	40	40	40	40	40	45

舵槳安裝形式
艉機型安裝

Installation type ofRudder Prpeller
Transom installation

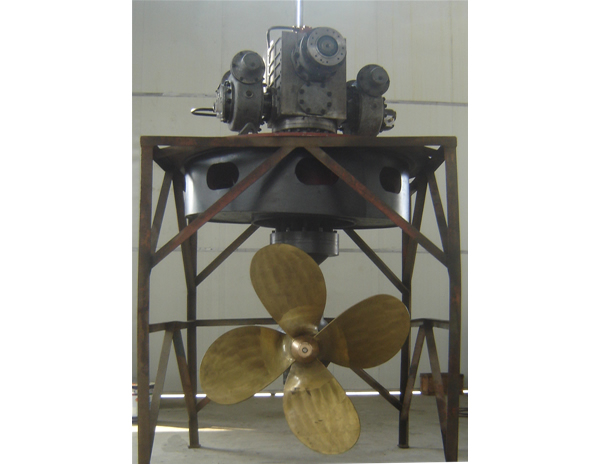

舵槳轉可由機械的，液壓的和電液遙控的轉舵裝置來實現。舵槳可以用作船舶的主、輔推進和動力定位，常用于拖船、推船、渡船和駁船等。目前工廠正在開發更大功率舵槳，以滿足市場需要。
The Rudder Propeller can be operated by mecha nical,hydraulic or electric-hydraulic unit.and can be in active service as main propulsion,auxiliary propulsion of the ship.which are usually used in http://www.jmmd.cn/tp/tscygs,push boats,ferry boats and barges etc.Now the factory is developing higher power RP to satisfy requirements from the market.
area of home and abroad

井式安裝

Well installation

原動機（柴油機）的推進動力通常是通過高彈性聯軸器、離合器、萬向傳動軸送到舵槳，舵槳將動力通過上、下兩對螺旋錐齒輪付傳送到螺旋槳，從而產生推力（Ｚ型推進）。
The power of the diesel engine is transmitted to the Rudder Propeller through an elastic coupling,a clutch and the universal shafts,The Rudder Propeller transmits the engine power to the propeller via upper and lower bevel gear sets (Z-drive).

甲板機組型舵槳

Deck installation

　　DECK 舵槳是將舵槳和柴油機組裝串聯成的完整的船用推進機組。它包括柴油機和舵槳等。具有工作可靠，結構緊湊等優點，柴油機通過彈性聯軸節、離合器和萬向軸把動力傳遞給舵槳，在機座上安裝有液壓系統、電控箱、日用燃油箱等部件。由于DECK舵槳自成一體，在裝船前機組內的各部件和系統均連接安裝、調試完畢。公共機座在船上就位固定以后，只需要連接少量管路和電纜，船舶就具有航行和操縱能力。整臺舵槳直接安裝甲板機座上，舵槳安裝于機架的尾端。
　　舵槳可以借助于機械的或液壓的調節裝置在垂直方向提升和下降，通過調整螺旋槳吃水深度，使船在吃水深度變化時都能獲得最大的推力。
　　當舵槳需要維修時，舵槳可以借助于機械或液壓的裝置把舵槳翹出水面。

　　Deck installation is a complete propulsion package.It is a reliable and compact propulsion plant.The chassis carries the totally enclosed propulsion system.The power of the diesel engine is transmitted to the rudder propeller through an elastic coupling. a hydraulic clutch and a universal shaft.The chassis is constructed with a hydraulic system,an electric control box,daily fuel tank and so on system units.Installation is fast and simple because they are essentially self-con-tained.Only to connect the minnimum hoses and cables can make it available to obtain thrust.The desk installation unit merely has to be mounted and bolted onto afoundation of deck.Rudder propeller is mounted at the rear chassis.
　　The rudder propeller can be mechanically or hydraulically raised or lowered in vertical direction by means of a depth adjustmen facil-ity.this serves to ensure maximum propeller thrust at all vessel draughts by maintaining the correct propeller thrust at all vessel draughts by maintaining the correct propeller immersion.
　　For maintenance purposes,the rudder propeller can be pivoted out of the water to the rear hydraulically or mechanically by hand.
